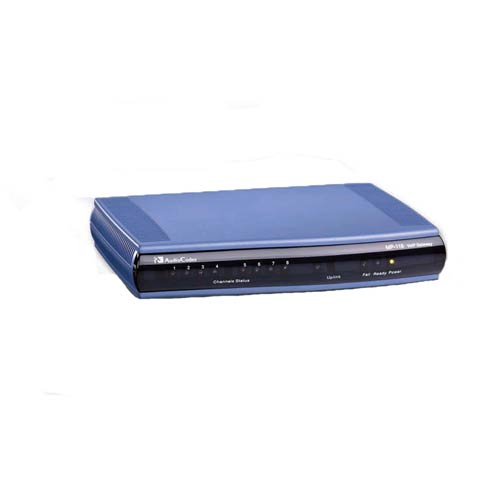

Includes 8 FXS analog lines, singl e10/100 BaseT, AC power supply, life line support (requires additional life line cable).

The MediaPack™ Series Analog VoIP Gateways are cost-effective, best-of-breed technology products. These stand-alone analog VoIP Gateways provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP-based telephony networks, as well as for integration with new IP-based PBX systems. These products are designed and tested to be fully interoperable with leading Softswitches, SIP servers and H.323 gatekeepers.

MediaPacks are well suited for commercial VoIP deployment because of their mature and field-proven voice and fax technology. Their rich feature set allows integration with a wide range of Carriers and Enterprise network applications. MediaPack gateways are used by Carriers and Service Providers in Access networks for connecting Multi-Tenant Units (MTU), IP Centrex subscribers, payphones and rural users over various wireless and satellite links. Enterprises use MediaPack gateways to connect their legacy PBX systems over an IP infrastructure. In addition, in IP Centrex and central IP-PBX applications, the MediaPack increases the remote location availability and provides Stand Alone Survivability (SAS) when there is no IP connection between branch locations and the central SIP servers, SIP Proxy or central IP-PBX.

MediaPacks are third generation products that have been designed to meet real market needs. In addition to superior voice technology, the products provide advanced telephony features such as long-haul, metering tones generation, country dependent MWI and CID for true integration with the existing telephony infrastructure. A variety of management and provisioning tools, such as AudioCodes’ EMS, embedded web server, Telnet and SNMP enable fast deployment and management of large and complex networks. MediaPacks are based on VolPerfect™ architecture, AudioCodes underlying, best-of-breed, core media gateway technology for all of its products.

• 8 Voice Ports
• FXS, FXO or mixed FXS/FXO, RJ11 Telephone Interfaces
• Lifeline: Automatic cut through of a single analog line
• 10/100 BASE-TX, RJ45 Network Interface
• T.38 compliant
• Rich subscriber Feature Set including: 3-Way conference with local mixing, call pickup, hunt groups, call forwarding, call hold and call transfer
• Echo cancellation, Jitter Buffer, VAD and CNG
• Complies with MGCP, H.323 (V4) and SIP control protocols
• Enhanced capabilities which include MWI, long-haul, Metering Tones, STUN, Security features, Generation, CID and outdoor protection
• Stand Alone Survivability (SAS) for SIP based IP Centrex and Central IP-PBX applications
• FXS, FXO Loop-start
• Web Management for easy configuration and installation
• EMS for comprehensive management operations (FCAPS)
• Automatic provisioning via TFTP/HTTP
• Internal Access List firewall for network traffic filtering
