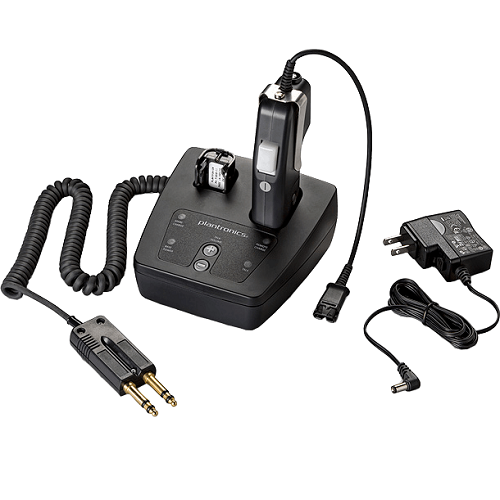

The CA12CD-S is a cordless PTT (push-to-talk) headset adapter designed to provide wireless communications and PTT functionality for applications such as Public Safety Dispatch and Air Traffic Control. The CA12CD-S is supplied with the analog Console Interface Cable (PJ-7) as shown. For digital applications, Model SSP 2468-01 (sold separately) can be installed. This USB-PTT Adapter Cable replaces the Console Interface Cable and provides a complete digital solution. The CA12CD-S uses digital processing (DECT™ 6.0), and operates in the UPCS band (1.92 – 1.93 GHz ) in North America. European versions are also available that operate within the DECT frequency range (1.88 – 1.90 GHz). Various connector options available upon request.
BASE UNIT:
-
Two charging wells (unit supplied with
an extra battery)
-
Sending and receiving sensitivity controls
-
Status LEDs for Power, Battery Charging
and PTT
-
Coil cord (10 ft. extended) with PJ-7 connector
-
Battery recharge time: 1 hour ( 90%);
3 hours (100%)
-
Operating temp. range: +4°C (40°F ) to
+49°C (110°F )
Product also known as:
CA12CD-S, Professional Cordless PTK w/QD and Encryption
